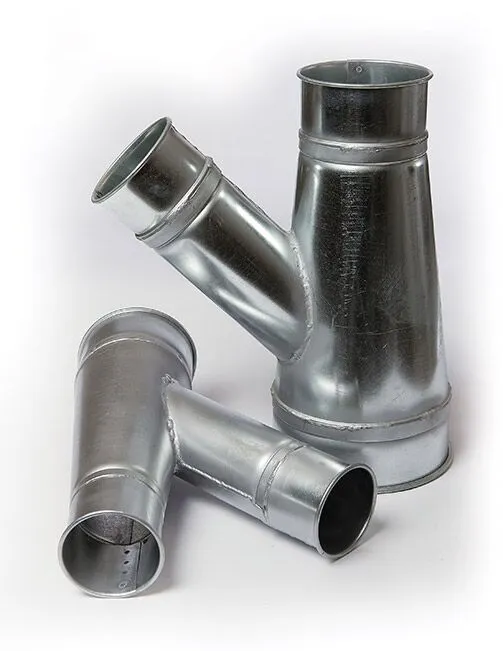

Our galvanized steel branches let you direct air from the main supply to another area. These branches have rolled ends, are welded to the taper, and caulked. Order 30°, 45° or 90°.
| SKU | Ø Size | GA | WT |
|---|---|---|---|
| SI14003.3 | 3 | 20 | 2.32 |
| SI14004.3 | 4 | 20 | 3.00 |
| SI14005.3 | 5 | 20 | 3.75 |
| SI14006.3 | 6 | 20 | 4.25 |
| SI14008.3 | 7 | 20 | 5.00 |
| SI14008.3 | 8 | 20 | 6.00 |
| SI14009.3 | 9 | 20 | 7.25 |
| SI14010.3 | 10 | 20 | 8.50 |
| SI14011.3 | 11 | 20 | 9.25 |
| SI14012.3 | 12 | 20 | 10.75 |
| SI14013.3 | 13 | 20 | 11.40 |
| SI14014.3 | 14 | 20 | 13.50 |
| SI14015.3 | 15 | 20 | 15.60 |
| SI14016.3 | 16 | 20 | 17.56 |
| SI14017.3 | 17 | 20 | 19.00 |
| SI14018.3 | 18 | 20 | 21.00 |
| SI14019.3 | 19 | 20 | 26.00 |
| SI14020.3 | 20 | 20 | 30.00 |
| SI14022.3 | 22 | 20 | 39.50 |
| SI14024.3 | 24 | 20 | 53.50 |
| SKU | Ø Size | GA | WT |
|---|---|---|---|
| SI14003.45 | 3 | 20 | 2.32 |
| SI14004.45 | 4 | 20 | 3.00 |
| SI14005.45 | 5 | 20 | 3.75 |
| SI14006.45 | 6 | 20 | 4.25 |
| SI14007.45 | 7 | 20 | 5.00 |
| SI14008.45 | 8 | 20 | 6.00 |
| SI14009.45 | 9 | 20 | 7.25 |
| SI14010.45 | 10 | 20 | 8.50 |
| SI14011.45 | 11 | 20 | 9.25 |
| SI14012.45 | 12 | 20 | 10.75 |
| SI14013.45 | 13 | 20 | 11.40 |
| SI14014.45 | 14 | 20 | 13.50 |
| SI14015.45 | 15 | 20 | 15.60 |
| SI14016.45 | 16 | 20 | 17.56 |
| SI14017.45 | 17 | 20 | 19.00 |
| SI14018.45 | 18 | 20 | 21.00 |
| SI14019.45 | 19 | 20 | 26.00 |
| SI14020.45 | 20 | 20 | 30.00 |
| SI14022.45 | 22 | 20 | 39.50 |
| SI14024.45 | 24 | 20 | 53.50 |
| SKU | Ø Size | GA | WT |
|---|---|---|---|
| SI14303 | 3 | 20 | 1.50 |
| SI14304 | 4 | 20 | 2.00 |
| SI14305 | 5 | 20 | 2.75 |
| SI14306 | 6 | 20 | 3.25 |
| SI14307 | 7 | 20 | 4.00 |
| SI14308 | 8 | 20 | 4.75 |
| SI14309 | 9 | 20 | 5.50 |
| SI14310 | 10 | 20 | 6.00 |
| SI14311 | 11 | 20 | 7.50 |
| SI14312 | 12 | 20 | 8.75 |
| SI14313 | 13 | 20 | 10.25 |
| SI14314 | 14 | 20 | 12.00 |
| SI14315 | 15 | 20 | 13.25 |
| SI14316 | 16 | 20 | 14.00 |
| SI14317 | 17 | 20 | 16.00 |
| SI14318 | 18 | 20 | 18.25 |
| SI14319 | 19 | 20 | 19.00 |
| SI14320 | 20 | 20 | 20.50 |
| SI14322 | 22 | 20 | 24.75 |
| SI14324 | 24 | 20 | 28.95 |
